Traction Control Switch: Service and Repair

DSC OFF SWITCH REMOVAL/INSTALLATION

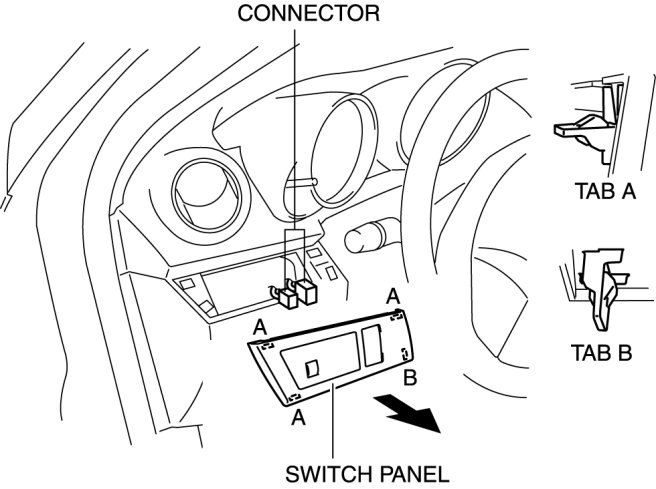

1. Remove the switch panel in the direction of the arrow shown in the figure.






2. Disconnect the connector.

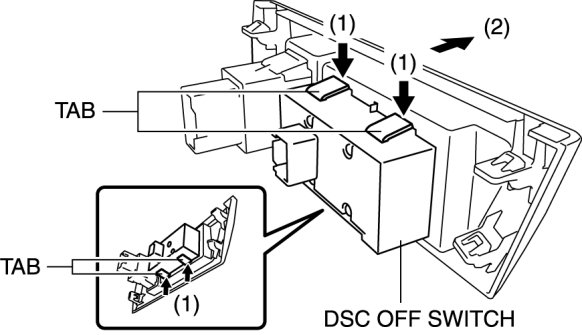

3. Remove the DSC OFF switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).






4. Remove the DSC OFF switch.

5. Install in the reverse order of removal.
