Air Duct: Service and Repair

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate Front Scuff Plate Removal/Installation

b. Console Console Removal/Installation

c. Front side trim Front Side Trim Removal/Installation

d. Fuel-filler lid opener lever cover Fuel-Filler Lid Opener And Lever Removal/Installation

3. Turn the floor covering over.

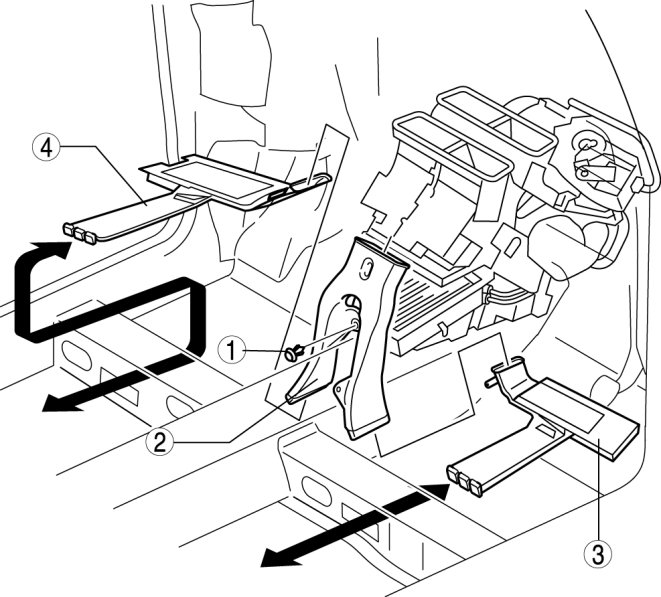

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
