Headlamp Alignment Sensor: Service and Repair

AUTO LEVELING SENSOR REMOVAL/INSTALLATION

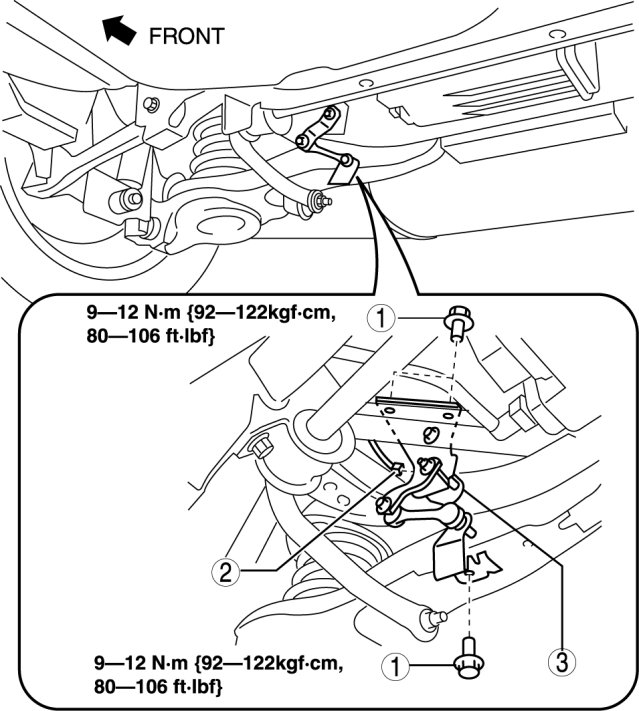

Front

1. Disconnect the negative battery cable.

2. Lift up the vehicle.

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Perform the auto leveling system initialization. Programming and Relearning

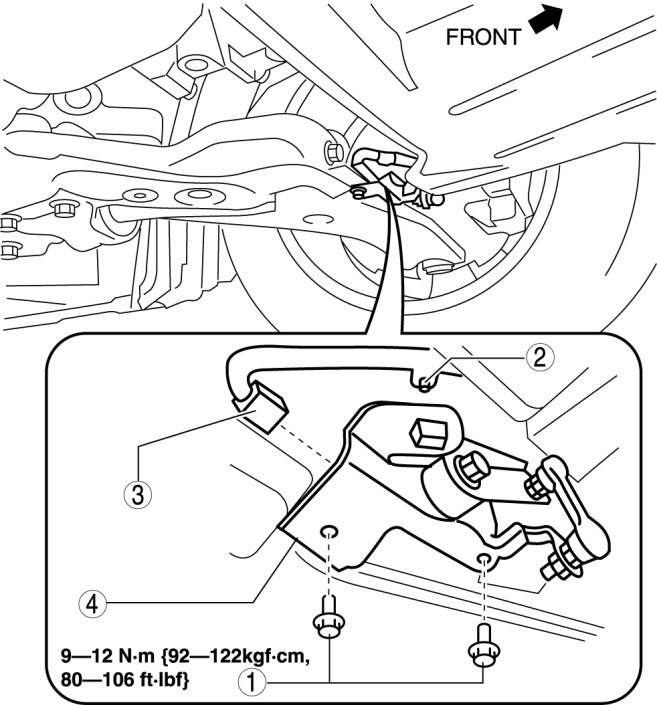

Rear

1. Disconnect the negative battery cable.

2. Lift up the vehicle.

3. Disconnect the Charcoal canister connector.

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

6. Perform the auto leveling system initialization. Programming and Relearning
