Power System (Without Advanced Keyless Entry and Push Button Start System)

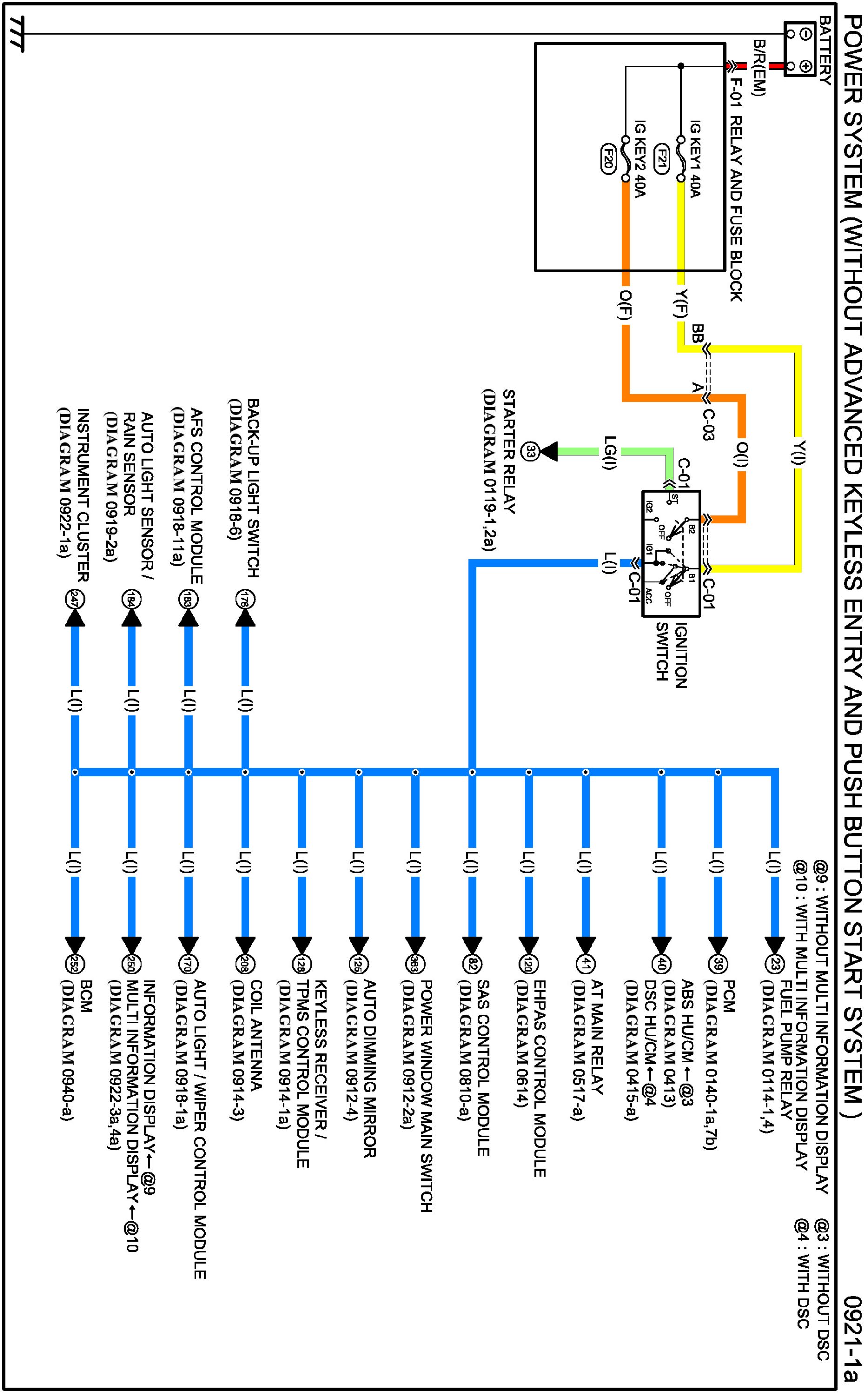

Diagram 0921-1a:

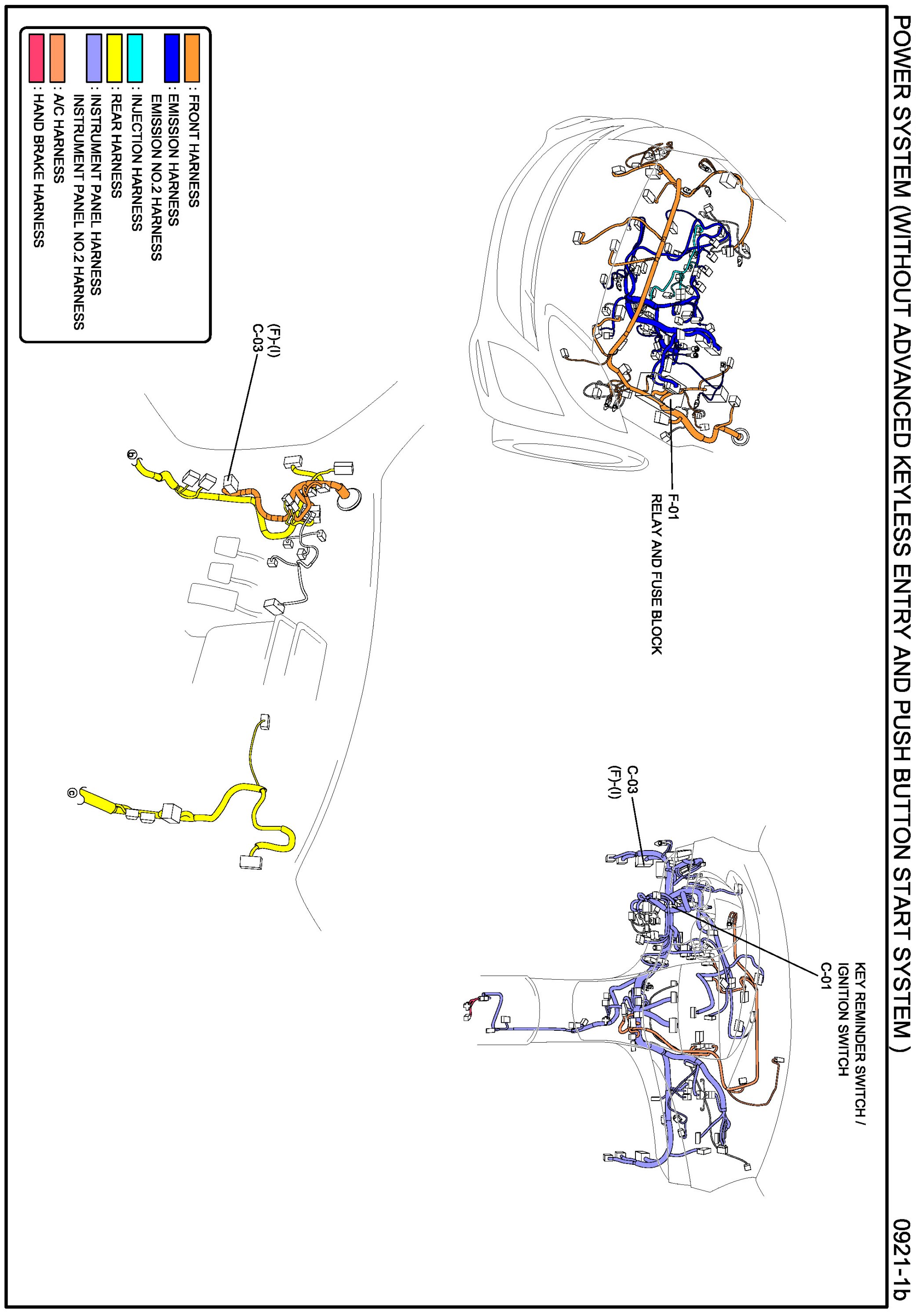

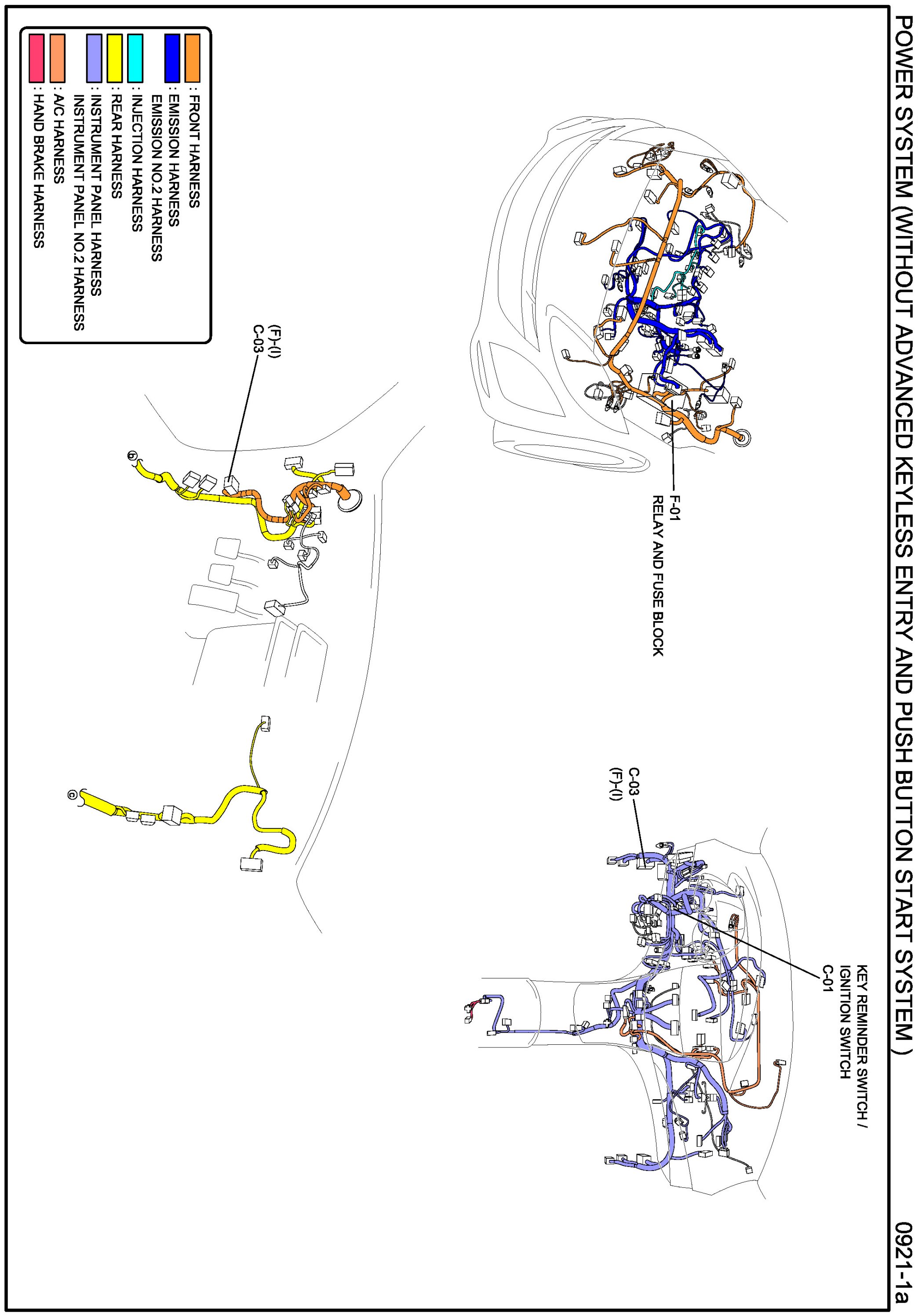

Routing View 0921-1a:

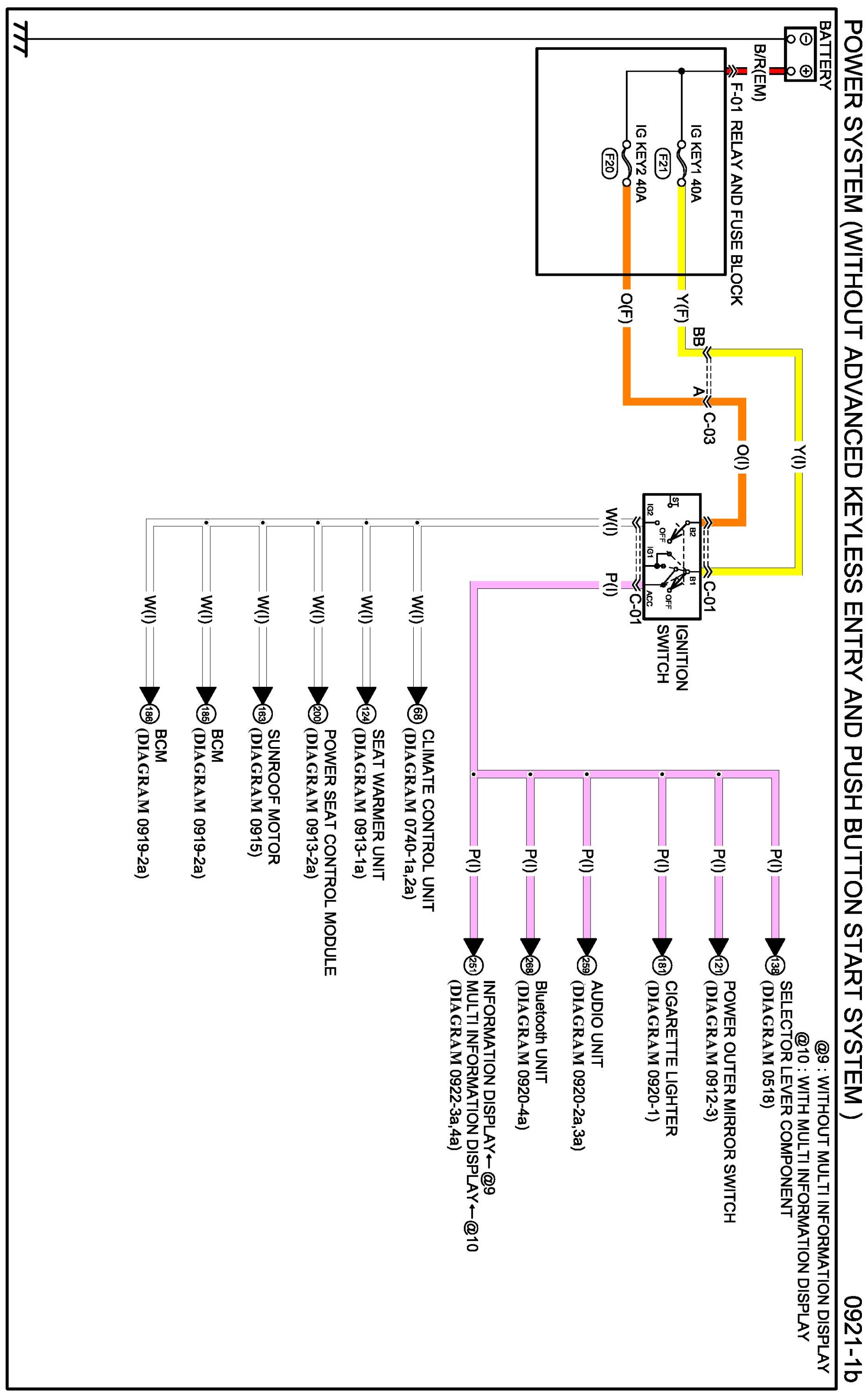

Diagram 0921-1b:

Routing View 0921-1b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
