Intermediate Sensor Removal/Installation

INTERMEDIATE SENSOR REMOVAL/INSTALLATION [FS5A-EL]

CAUTION:
- If foreign materials are stuck to the sensor, disturbance by magnetic flux can cause sensor output to be abnormal and thereby negatively affect control. Make sure that foreign materials such as iron filings are not stuck to the sensor during installation.

1. Perform the following procedures.
a. Remove the battery cover. Removal and Replacement

b. Disconnect the negative battery cable.

c. Remove the battery component (ex: battery, battery tray and PCM component). Removal and Replacement

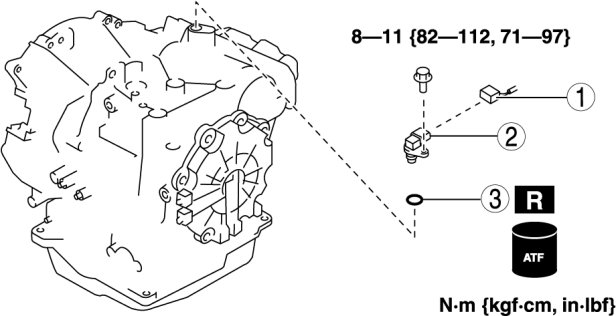

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
