Clearing DTC [Advanced Keyless Entry And Push Button Start System]

Connect the M-MDS to the DLC-2.
After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
  1. Select "Self Test".
  2. Select "Modules".
  3. Select "RKE".
- When using the PDS (Pocket PC)
  1. Select "Module Tests".
  2. Select "RKE".
  3. Select "Self Test".

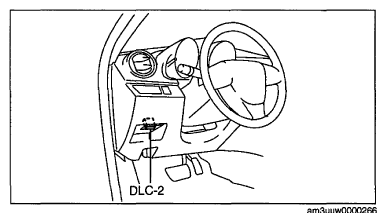

    Fig 1: Identifying DLC-2
    Courtesy of MAZDA MOTORS CORP.
Verify the DTC according to the directions on the screen.
Press the clear button on the DTC screen to clear the DTC.
Switch the ignition to off.
Switch the ignition to ON and wait for 5 s or more.
Perform the DTC inspection. (See DTC INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
Verify that no DTCs are displayed.
