Keyless Control Module Removal/Installation

If the keyless control module is replaced, always perform the following procedure.
- Vehicles with immobilizer system
  - Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION ).
  - Immobilizer System-related Parts Programming [No. 4 Programming Procedure Due to Keyless Control Module Replacement] (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
- Vehicles without immobilizer system
  - Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION ).
  - Advanced Key Id Code Registration (See ADVANCED KEY ID CODE REGISTRATION ).
  - Steering Lock Unit Id Code Registration (See TRANSMITTER ID CODE REGISTRATION ).
Disconnect the negative battery cable.
Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
3. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
4. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION ).
Remove in the nuts.

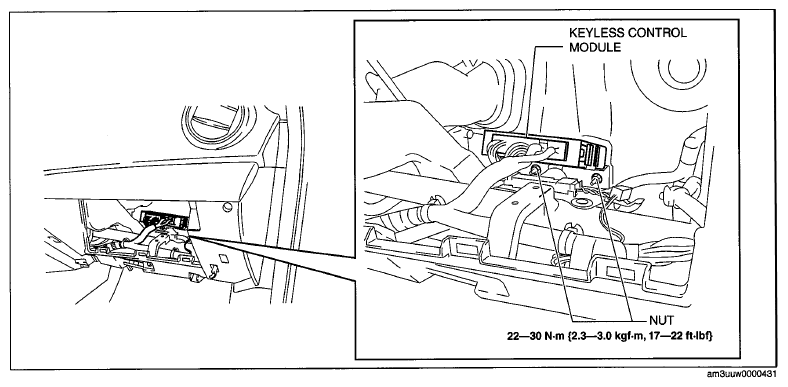

Fig 1: Keyless Control Module And Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

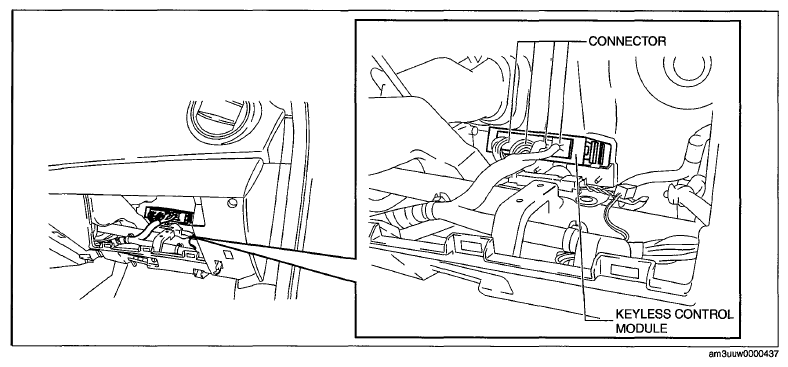

Fig 2: Identifying Keyless Control Module Connector
Courtesy of MAZDA MOTORS CORP.
Remove the Keyless control module.
Install in the reverse order of removal.
