AFS Control Module And Front Auto Leveling Sensor Connector End View

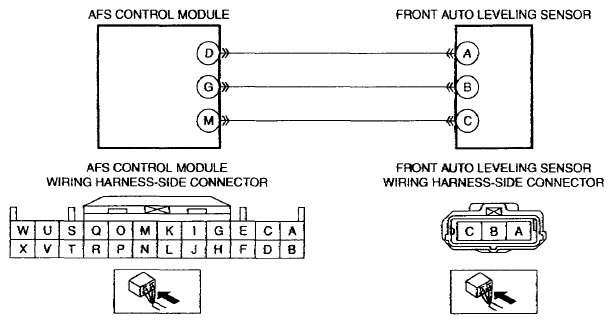

Fig 1: AFS Control Module And Front Auto Leveling Sensor Connector End View
G07874923Courtesy of MAZDA MOTORS CORP.
