Seat Weight Sensor Control Module Malfunction System Connector End View

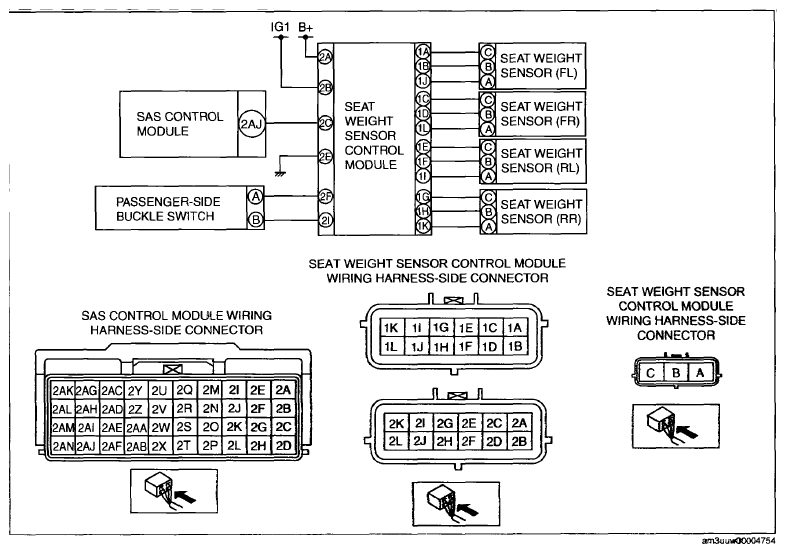

Fig 1: Seat Weight Sensor Control Module Malfunction System Connector End View
G07878790Courtesy of MAZDA MOTORS CORP.
