Auto Light/Wiper Control Module Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
3. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
4. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.

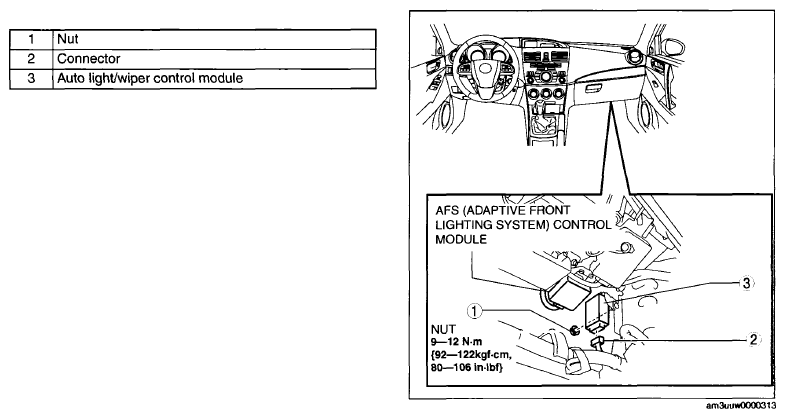

Fig 1: Auto Light/Wiper Control Module And Connector With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
