Ignition Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

Disconnect the negative battery cable.
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION ).
Detach the tab.

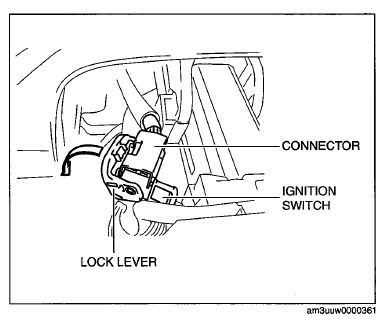

Fig 1: Identifying Ignition Switch
Courtesy of MAZDA MOTORS CORP.
Pull the pin in the direction of the arrow shown in the figure and release the lock.

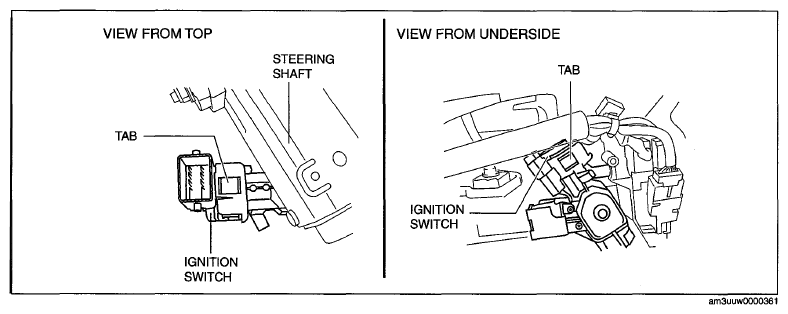

Fig 2: Pulling Pin In Direction Of Arrow
Courtesy of MAZDA MOTORS CORP.
Disconnect the ignition switch connector and key interlock solenoid connector.

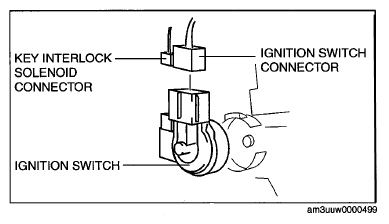

Fig 3: Disconnecting Ignition Switch Connector And Key Interlock Solenoid Connector
Courtesy of MAZDA MOTORS CORP.
Remove the tabs.

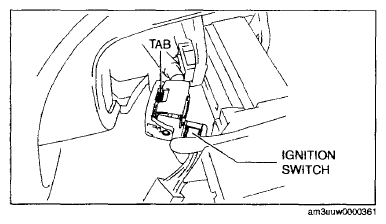

Fig 4: Removing Ignition Switch From Steering Shaft
Courtesy of MAZDA MOTORS CORP.
Remove the ignition switch from the steering shaft.
Install in the reverse order of removal.
