Power System Location Index [Without Advanced Keyless Entry And Push Button Start System]

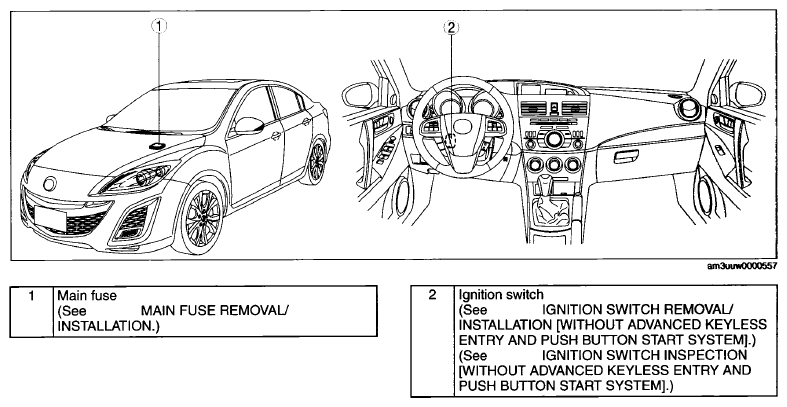

Fig 1: Identifying Main Fuse And Ignition Switch
G07876082Courtesy of MAZDA MOTORS CORP.
