Relay Block Inspection [With Advanced Keyless Entry And Push Button Start System]

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION ).
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    5. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    9. Console (See CONSOLE REMOVAL/INSTALLATION ).
    10. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION ).
    11. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION ).
  3. Remove the relay block. (See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
  4. Verify that the continuity is as indicated in the table.

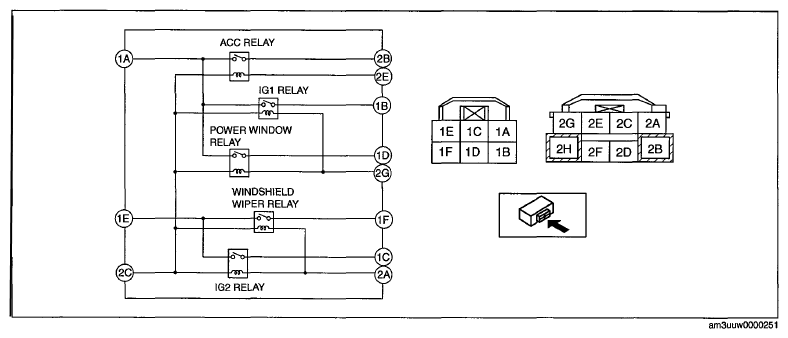

    Fig 1: Identifying Relay Block
    G06733165Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the relay block.

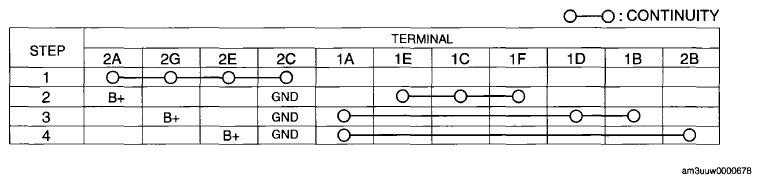

      Fig 2: Identifying Continuity Between Relay Block Terminals
      G07876103Courtesy of MAZDA MOTORS CORP.
