Relay Block Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION ).
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    5. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION ).
    7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION ).
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    9. Console (See CONSOLE REMOVAL/INSTALLATION ).
    10. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION ).
    11. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION ).
  3. Remove the nut and clip.

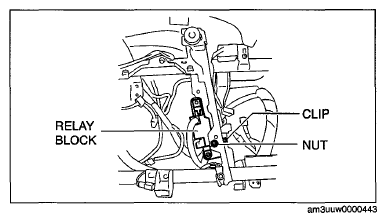

    Fig 1: Removing Relay Block Nut And Clip
    G06733162Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connectors.

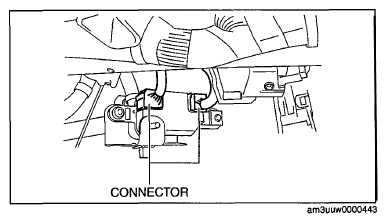

    Fig 2: Removing Relay Block Connectors
    G06733163Courtesy of MAZDA MOTORS CORP.
  5. Remove the nut and clip.

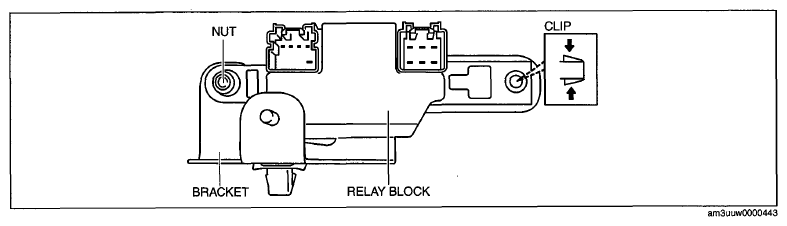

    Fig 3: Removing Relay Block Bracket Nut And Clip
    G06733164Courtesy of MAZDA MOTORS CORP.
  6. Remove the relay block from the bracket.
  7. Install in the reverse order of removal.
