Resistance Inspection

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  2. Disconnect the negative battery cable.
  3. Disconnect the MAF/IAT sensor.
  4. Measure the resistance between the MAF/IAT sensor terminals D and E using a tester.
    SPECIFICATION

    Ambient temperature (°C {°F}) Resistance (kilohm)
    20 {68} 2.21-2.69
    60{140} 0.493-0.667

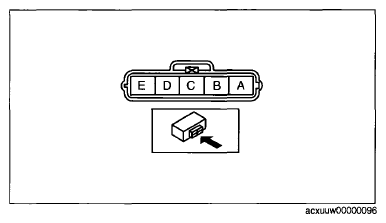

    Fig 1: Identifying MAF/IAT Sensor Connector Terminals
    G07868468Courtesy of MAZDA MOTORS CORP.
