Variable Tumble Shutter Valve Switch Inspection

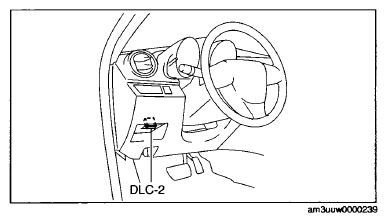

- Connect the M-MDS to the DLC-2.
- Switch the ignition to ON.
- Verify that the voltage (M-MDS PID: IMRC_POS) within the specification. (See
PCM INSPECTION ).
- If not as specified, replace the intake manifold.
