Steering Dust Cover Installation Note

  1. Install the steering dust cover to the dashboard lower panel.
  2. Verify that the lip area of the steering dust cover is securely installed to the steering gear, and the tabs are installed to the dashboard lower panel.

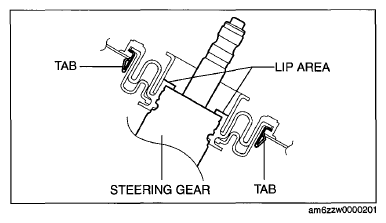

Fig 1: Tab And Lib Area Of Steering Gear
G07626532Courtesy of MAZDA MOTORS CORP.
