Steering Lock Component, Steering Lock Mounting Bolt Installation Note

1. Assemble section A of the steering lock component to the section B of the steering shaft.

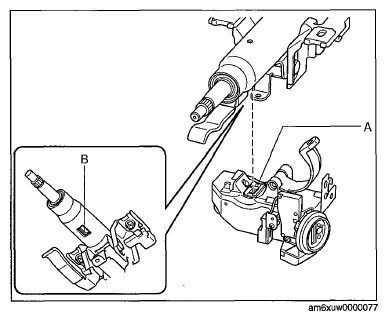

   Fig 1: Assemble Section A Of Steering Lock Component To Section B Of Steering Shaft

   Courtesy of MAZDA MOTORS CORP.
2. Set the set cover to the steering shaft and then temporarily install the steering lock component to the steering shaft using a new steering lock mounting bolt.

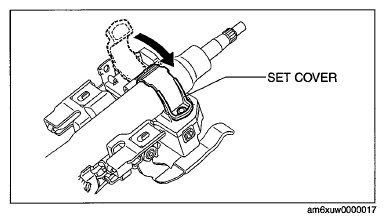

   Fig 2: Setting Set Cover Into Steering Shaft

   Courtesy of MAZDA MOTORS CORP.
3. Tighten the steering lock mounting bolt until the head breaks off.

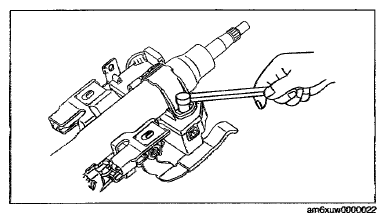

Fig 3: Tightening Steering Lock Mounting Bolt

Courtesy of MAZDA MOTORS CORP.
