Power Window Main Switch

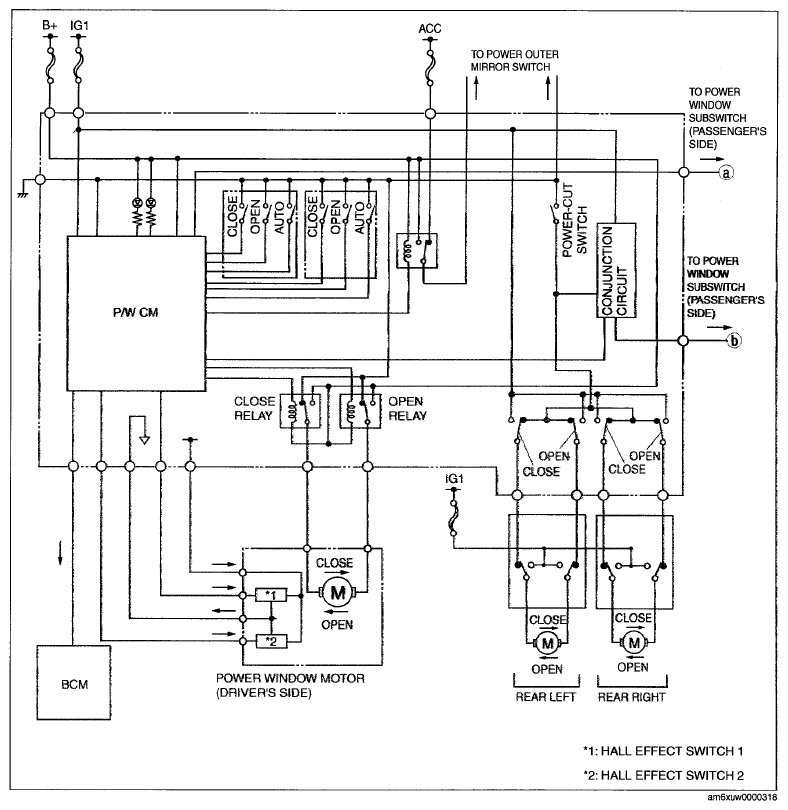

Fig 1: Power Window Main Switch Wiring Diagram [Power Window Systems (Auto-Open/Close Function)]
G07621764Courtesy of MAZDA MOTORS CORP.
