DTC B1026:71 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Unable to lock steering column

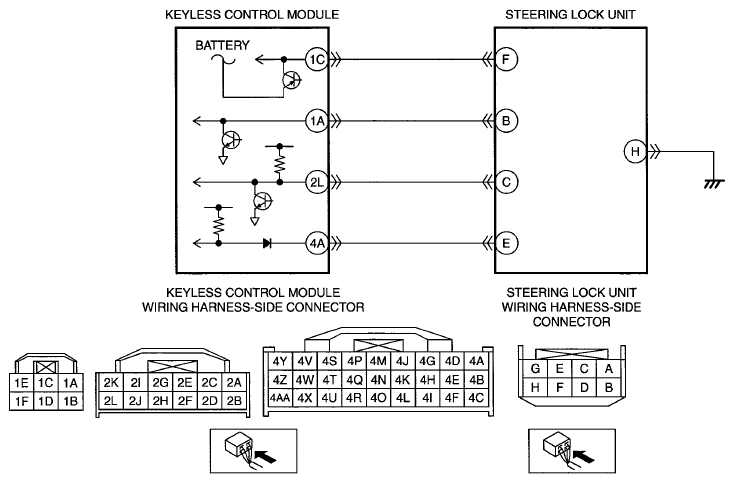

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between steering lock unit terminal F and keyless control module terminal 1C Short to power supply in wiring harness between steering lock unit terminal B and keyless control module terminal 1A Open circuit in wiring harness between steering lock unit terminal F and keyless control module terminal 1C Open circuit in wiring harness between steering lock unit terminal B and keyless control module terminal 1A Steering lock unit malfunction Keyless control module malfunction
