DTC B1026:87 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

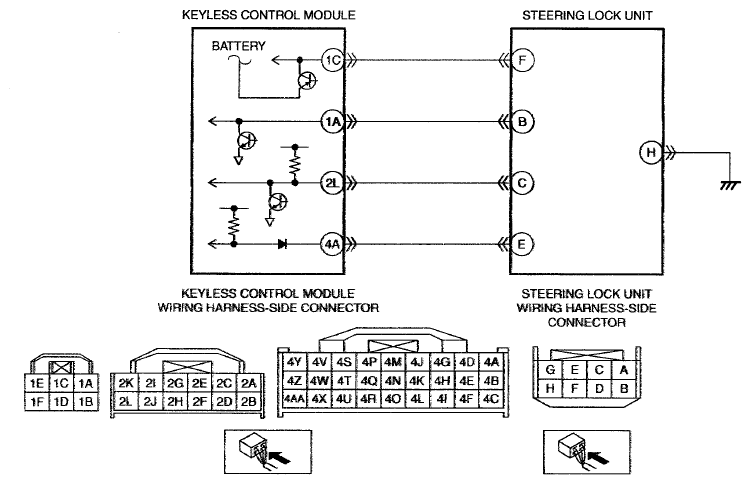

DETECTION CONDITION	Communication error between keyless control module and steering lock unit
POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between steering lock unit terminal C and keyless control module terminal 2L Short to power supply in wiring harness between steering lock unit terminal C and keyless control module terminal 2L Open circuit in wiring harness between steering lock unit terminal C and keyless control module terminal 2L Steering lock unit malfunction Keyless control module malfunction
