DTC B108B:29 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Mismatch state of push button start 1 and 2

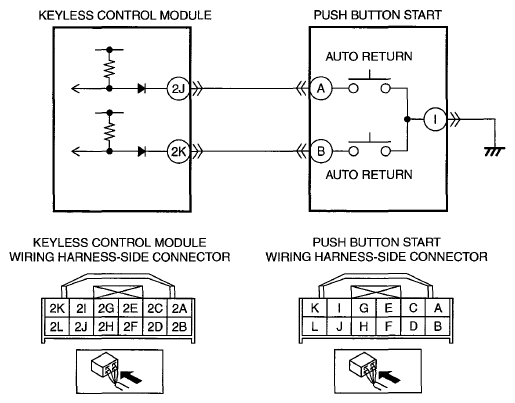

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between push button start terminal A and keyless control module Short to ground in wiring harness between push button start terminal B and keyless control module Short to power supply in wring harness between push button start terminal A and keyless control module terminal 2J Short to power supply in wiring harness between push button start terminal B and keyless control module terminal 2K Push button start malfunction Open circuit in wiring harness between push button start terminal A and keyless control module terminal 2J Open circuit in wiring harness between push button start terminal B and keyless control module terminal 2K Keyless control module malfunction
