DTC B10C3:12 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Touch sensor (RF) circuit voltage higher than fern threshold (2.2-6.5 V  ) is detected for 1 s  while the circuit is net active

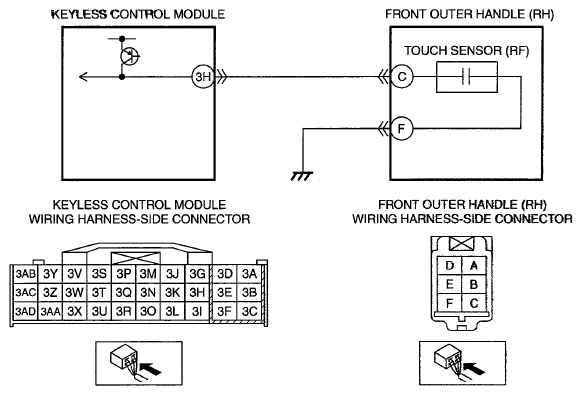

POSSIBLE CAUSE	Connector or terminal malfunction Short to power supply in wiring harness between front outer handle (RH) terminal C and keyless control module terminal 3H Touch sensor [RF] malfunction Keyless control module malfunction
