DTC B10C7:1F [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Cannot receive signal correctly from keyless antenna (interior, rear)

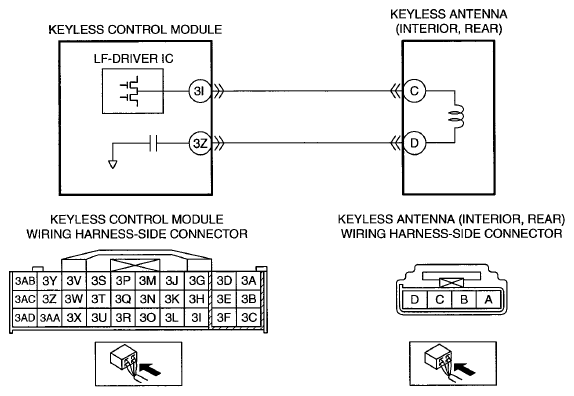

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in the wiring harness between keyless antenna (interior, rear) terminal C and keyless control module terminal 31 Short to ground in the wiring harness between keyless antenna (interior, rear) terminal D and keyless control module terminal 3Z Short to power supply in the wiring harness between keyless antenna (interior, rear) terminal C and keyless control module terminal 31 Short to power supply in the wiring harness between keyless antenna (interior, rear) terminal D and keyless control module terminal 3Z Open circuit in the wiring harness between keyless antenna (interior, rear) terminal C and keyless control module terminal 31 Open circuit in the wiring harness between keyless antenna (interior, rear) terminal D and keyless control module terminal 3Z Keyless antenna (interior, rear) malfunction Keyless control module malfunction
