DTC B10D1:23 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Detect request switch (LF) ON signal while driving

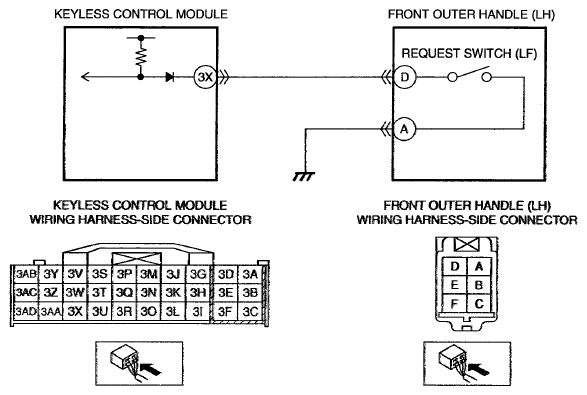

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between front outer handle (LH) terminal D and keyless control module terminal 3X Request switch (LF) malfunction Keyless control module malfunction
