DTC B10E7:11 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	IG1 relay output circuit voltage less than threshold (2.2-6.5 V  ) is detected for 0.1 s  , while the circuit is active

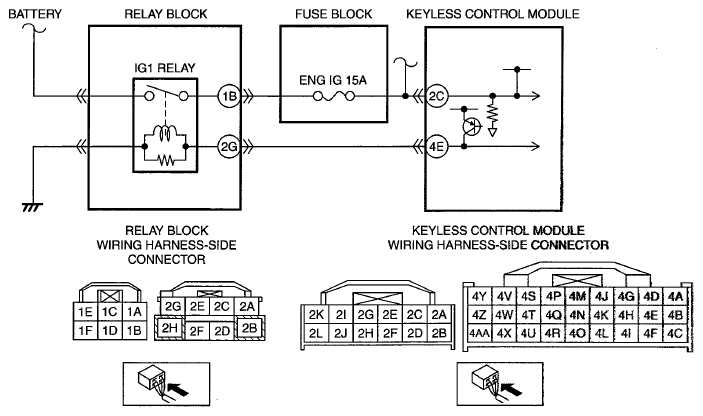

POSSIBLE CAUSE	Connects or terminal malfunction Start to ground in wiring harness relay block terminal 2G and keyless control module terminal 4E Relay block malfunction Keyless control module malfunction
