DTC B11E8:12 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	ABS driver circuit voltage higher than threshold (2.2-6.5 V  ) is detected under the following conditions: Ignition switch is off ABS driver circuit is not active

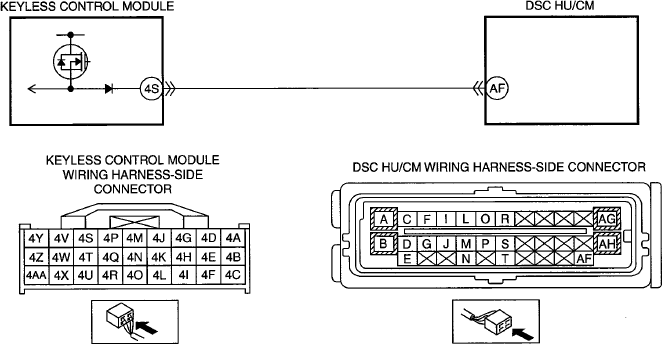

POSSIBLE CAUSE	Connector or terminal malfunction Short to power supply in wiring harness between DSC HU/CM terminal AF and keyless control module terminal 4S Short to power supply in wiring harness between combined sensor terminal D and keyless control module terminal 4S Keyless control module malfunction
