DTC B11FD:1F [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Cannot receive signal correctly from keyless antenna (exterior, LF)

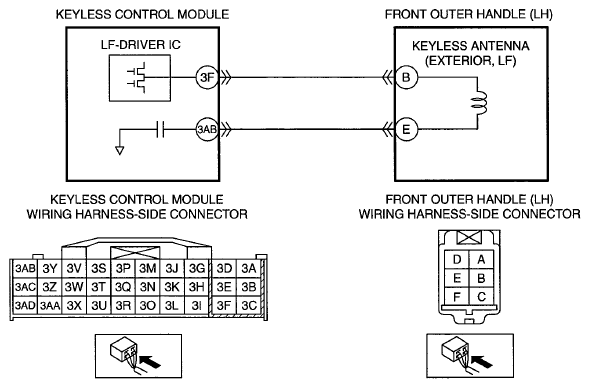

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between front outer handle (LH) terminal B and keyless control module terminal 3F Short to ground in wiring harness between front outer handle (LH) terminal E and keyless control module terminal 3AB Short to power supply in wiring harness between front outer handle (LH) terminal B and keyless control module terminal 3F Short to power supply in wiring harness between front outer handle (LH) terminal E and keyless control module terminal 3AB Open circuit in wiring harness between front outer handle (LH) terminal B and keyless control module terminal 3F Open circuit in wiring harness between front outer handle (LH) terminal E and keyless control module terminal 3AB Keyless antenna (exterior, LF) malfunction Keyless control module malfunction
