DTC B1210:1F [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Cannot receive signal correctly from keyless antenna (exterior, RF)

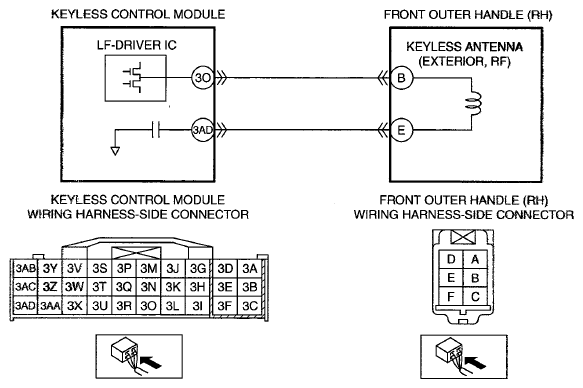

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in the wiring harness between front outer handle (RH) terminal B and keyless control module terminal 3O Short to ground in the wiring harness between front outer handle (RH) terminal E and keyless control module terminal 3AD Short to power supply in the wiring harness between front outer handle (RH) terminal B and keyless control module terminal 30 Short to power supply in the wiring harness between front outer handle (RH) terminal E and keyless control module terminal 3AD Open circuit in the wiring harness between front outer handle (RH) terminal B and keyless control module terminal 3O Open circuit in the wiring harness between front outer handle (RH) terminal E and keyless control module terminal 3AD Keyless antenna (exterior, RF) malfunction Keyless control module malfunction
