DTC P0830:23 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Clutch pedal position (CPP) switch signal is detected for 600 s

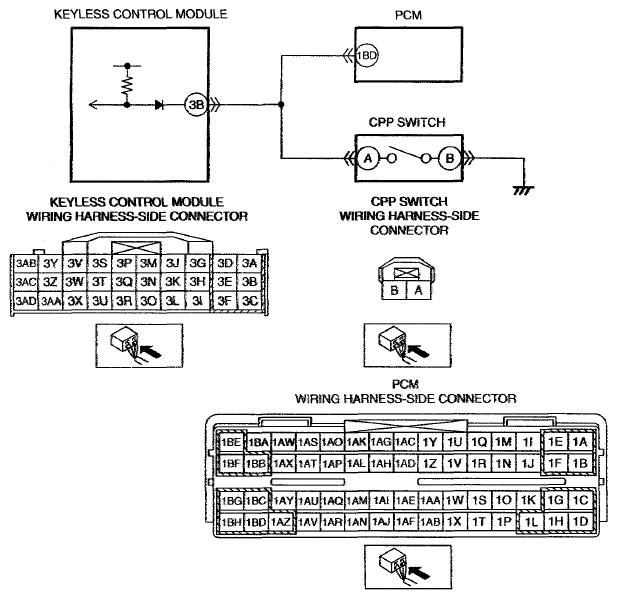

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in the wiring harness between clutch pedal position (CPP) switch terminal A and keyless control module terminal 3B Short to ground in the wiring harness between PCM terminal 1 BD and keyless control module terminal Clutch pedal position (CPP) switch malfunction PCM malfunction Keyless control module malfunction
