DTC U201F:00 [Advanced Keyless Entry And Push Button Start System]: Notes

DTC DETECTION CONDITION AND POSSIBLE CAUSES

DETECTION CONDITION	Communication error with keyless receiver

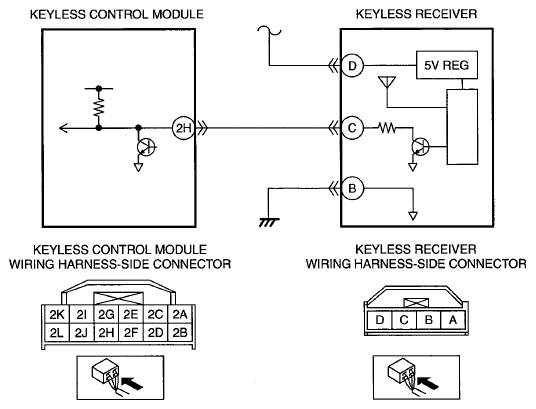

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in wiring harness between keyless receiver terminal C and keyless control module terminal 2H Open circuit in wiring harness between keyless receiver terminal C and keyless control module terminal 2H Keyless receiver malfunction Keyless control module malfunction
