Mirror Base Removal

  1. Remove the rearview mirror. (See REARVIEW MIRROR REMOVAL .)
  2. Wind each end of a wire around a bar.
    WARNING:
    • Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano wire.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of the piano wire to prevent it from breaking.

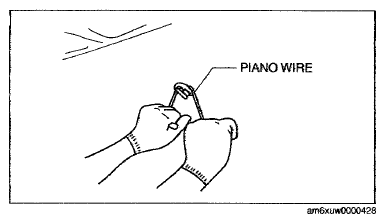

    Fig 1: Cutting Sealant To Remove Mirror Base
    G07621959Courtesy of MAZDA MOTORS CORP.
  3. Fix one end of the piano wire, and while puling the other end, cut the sealant to remove the base.
