Power Window Motor Removal/Installation: Notes

Front Power Window Motor

1. Fully lower the front door glass.
2. Disconnect the negative battery cable.
3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
5. Disconnect the front power window motor connector, remove the bolt, then remove the front power window motor from the front power window regulator drum in the direction of the arrow shown in the illustration.
6. Install in the reverse order of removal.
   NOTE:

   • When installing the front power window motor to the front power window regulator drum, the drum housing hooks may detach from the door module panel. If this happens, remove the front door speaker, insert your hand in the speaker installation hole, connect the drum housing hooks, and while supporting the drum housing, install the front power window motor to the drum.

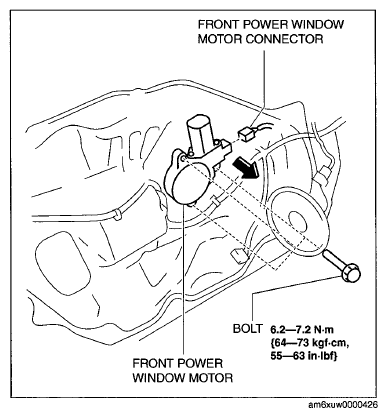

   Fig 1: Front Power Window Motor, Connector And Bolt

   Courtesy of MAZDA MOTORS CORP.
