With auto-open/close function

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Connect the negative battery cable.
  5. Measure the voltage at each terminal.
    • If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item(s)" and related wiring harnesses.

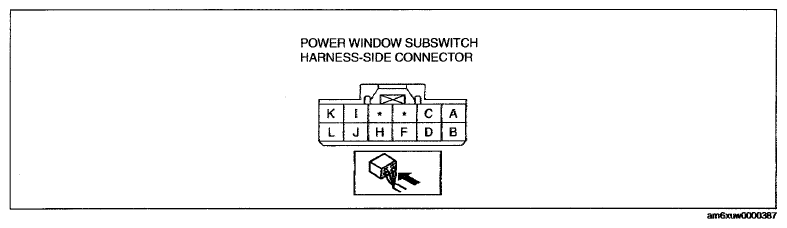

    Fig 1: Power Window Subswitch Harness-Side Connector Terminals
    G07621928Courtesy of MAZDA MOTORS CORP.
    • If the system does not work property even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    TERMINAL VOLTAGE CHART

    Terminal Signal name Connected to Measured condition Voltage (V) Inspection item (s)
    A Power-cut signal Power window main switch Switch the ignition ON and power-cut switch at UNLOCK B+
    • Power window main switch
    • Related wiring harness
    B Window open signal Power window motor Door glass opening B+
    • Power window motor
    • Related wiring harnesses
    Other 1.0 or less
    C Pulse 1 Power window motor Door glass is not in motion 1.0 or 5.0
    • Power window motor
    • Related wiring harnesses
    Door glass is in motion Alternates between 1.0 and 5.0
    D Power supply P.WIND(D)30A fuse Under any condition B+
    • P.WIND(D) 30 A fuse
    • Related wiring harnesses
    F Pulse 2 Power window motor Door glass is in motion Alternates between 1.0 and 5.0
    • Power window motor
    • Related wiring harnesses
    Door glass is not in motion 1.0 or 5.0
    H GND Body ground Under any condition 1.0 or less
    • GND
    I Sensor ground Power window motor Under any condition 1.0 or less
    • Power window motor
    • Related wiring harnesses
    J Window close signal Power window motor Door glass closing B+
    • Power window motor
    • Related wiring harnesses
    Other 1.0 or less
    K Power supply Power window motor Switch the ignition ON B+
    • Power window motor
    • Related wiring harnesses
    L Communication Power window main switch Terminal used for communication therefore determination based on terminal voltage inspection not possible.
