Ignition Switch Removal/Installation [Without Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
3. Pull the pin in the direction of the arrow shown in the illustration and release the lock.
4. Disconnect the connector.

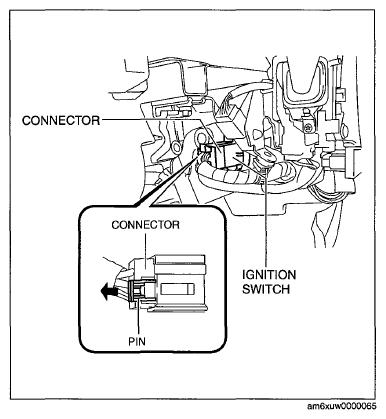

   Fig 1: Pulling Ignition Switch Pin

   Courtesy of MAZDA MOTORS CORP.
5. Remove the screw.

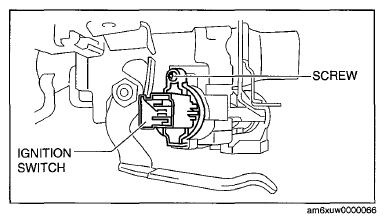

   Fig 2: Ignition Switch Screw

   Courtesy of MAZDA MOTORS CORP.
6. Remove the tabs.
7. Remove the ignition switch.
8. Install in the reverse order of removal.

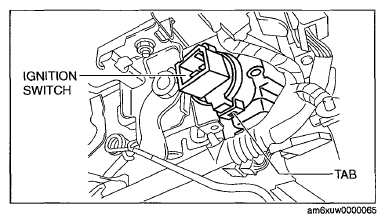

Fig 3: Ignition Switch And Tab

Courtesy of MAZDA MOTORS CORP.
