Power System Location Index [With Advanced Keyless Entry And Push Button Start System]

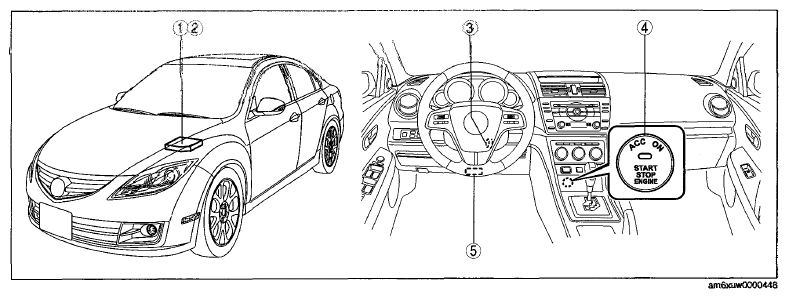

Fig 1: Power System Components Location (With Advanced Keyless Entry And Push Button Start System)

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION .)
2	Relay (See RELAY LOCATION .) (See RELAY INSPECTION .) (See.)
3	Steering lock unit (See STEERING LOCK UNIT INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
4	Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See PUSH BUTTON START INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See FORCED IGNITION ON [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See POWER SYSTEMS PERSONALIZATION FEATURES SETTING PROCEDURE .)
5	Relay block (See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
