Power System Location Index [Without Advanced Keyless Entry And Push Button Start System]

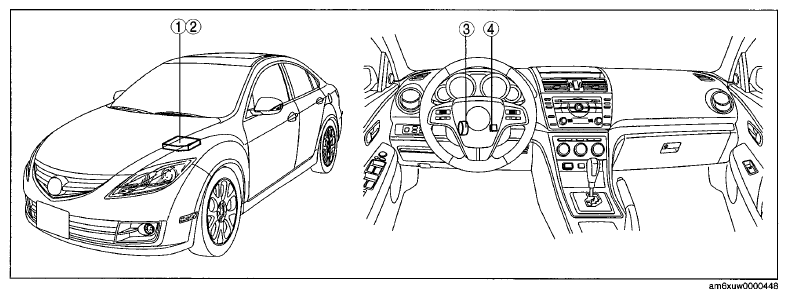

Fig 1: Power System Components Location (Without Advanced Keyless Entry And Push Button Start System)

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION .)
2	Relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
3	Ignition switch (See IGNITION SWITCH REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See IGNITION SWITCH INSPECTION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
4	Key reminder switch (See KEY REMINDER SWITCH REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See KEY REMINDER SWITCH INSPECTION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
