Relay Block Inspection [With Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable.
2. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
3. Remove the knee bolster. (See KNEE BOLSTER REMOVAL/INSTALLATION .)
4. Remove the relay block. (See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
5. Verify that the continuity is as indicated in the table.

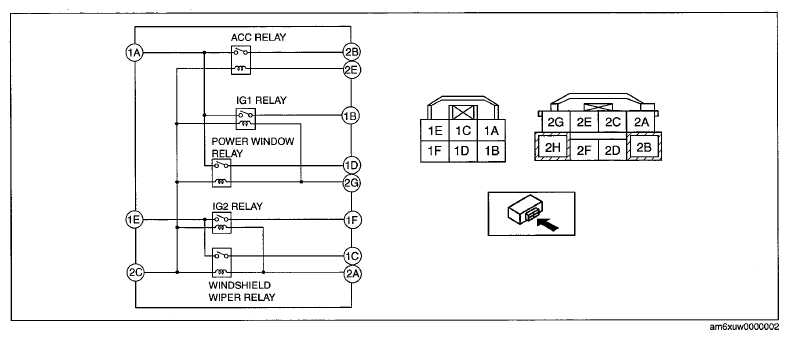

Fig 1: Relay Block Connector Terminals

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the relay block.

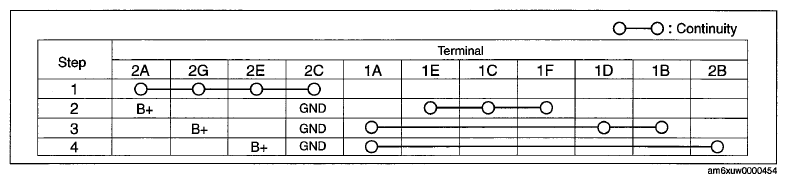

Fig 2: Relay Block Terminal Continuity Chart

Courtesy of MAZDA MOTORS CORP.
