Relay Block Removal/Installation [With Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable.
2. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
3. Remove the knee bolster. (See KNEE BOLSTER REMOVAL/INSTALLATION .)
4. Remove the wiring harness clip.
5. Remove the clips.

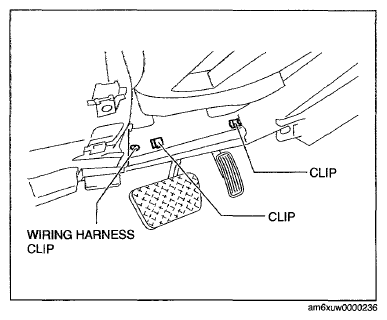

   Fig 1: Wiring Harness Clips

   Courtesy of MAZDA MOTORS CORP.
6. Remove the relay block.

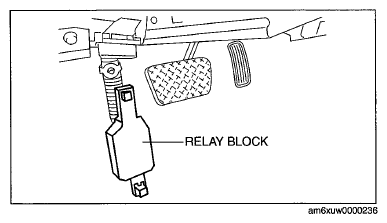

   Fig 2: Relay Block

   Courtesy of MAZDA MOTORS CORP.
7. Disconnect the connectors.
8. Install in the reverse order of removal.

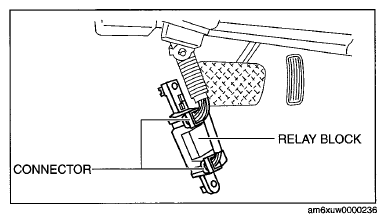

Fig 3: Relay Block And Connector

Courtesy of MAZDA MOTORS CORP.
