Ignition Coil: Service and Repair




IGNITION COIL REMOVAL/INSTALLATION [L3 WITH TC]

1. Disconnect the negative battery cable.

2. Remove the charge air cooler. Service and Repair

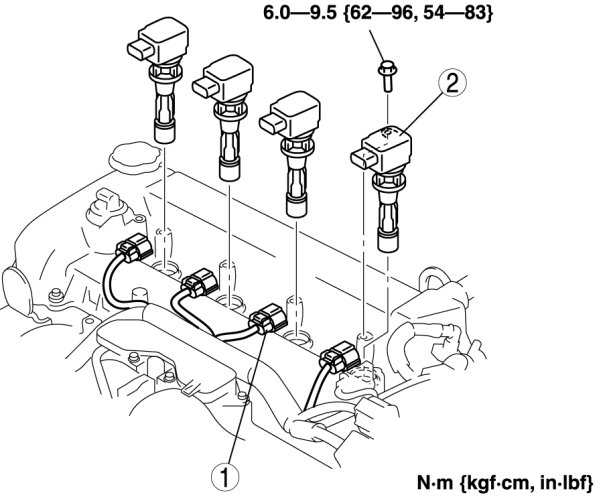

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
