Home >> Mazda >> 2011 >> CX-7 i SV, 2.5 5 >> Repair and Diagnosis >> Brakes >> Traction Control >> Dynamic Stability Control System >> TCS Off Switch Removal/Installation >> Notes
April 5, 2026: LEMON Manuals is launched! Read the announcement.

TCS Off Switch Removal/Installation: Notes

  1. Remove in the order indicated in the table in the illustration.
  2. Install in the reverse order of removal.

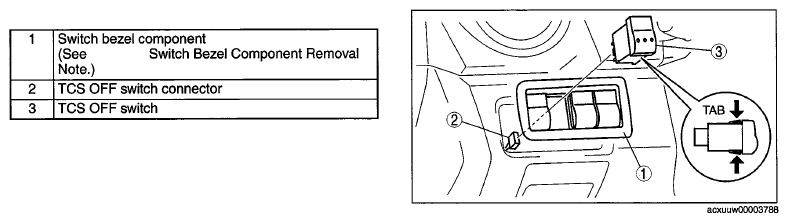

    Fig 1: Removing TCS OFF Switch
    G06725288Courtesy of MAZDA MOTORS CORP.
