Front Abs Wheel-Speed Sensor Removal/Installation

  1. Perform the following procedure and remove the LF ABS wheel-speed sensor.
    1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .) (See BATTERY REMOVAL/INSTALLATION [L5] .)
    2. Remove the air cleaner component and air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3 WITH TC] .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L5] .)
  2. Remove in the order indicated in the table in the illustration.
  3. Install in the reverse order of removal.

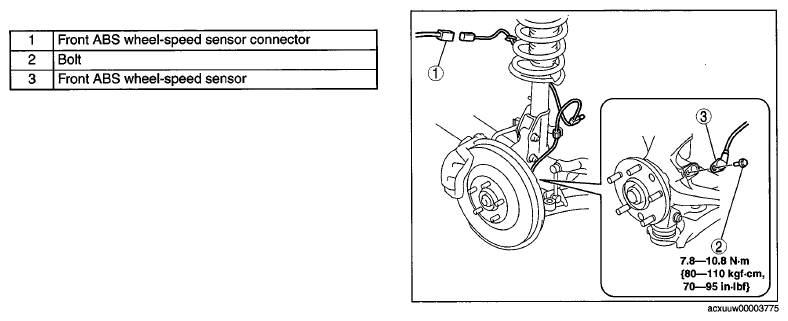

    Fig 1: Locating Front ABS Wheel-Speed Sensor, Connector And Bolt With Torque Specifications
    G06725271Courtesy of MAZDA MOTORS CORP.
