Control System Component Location Index

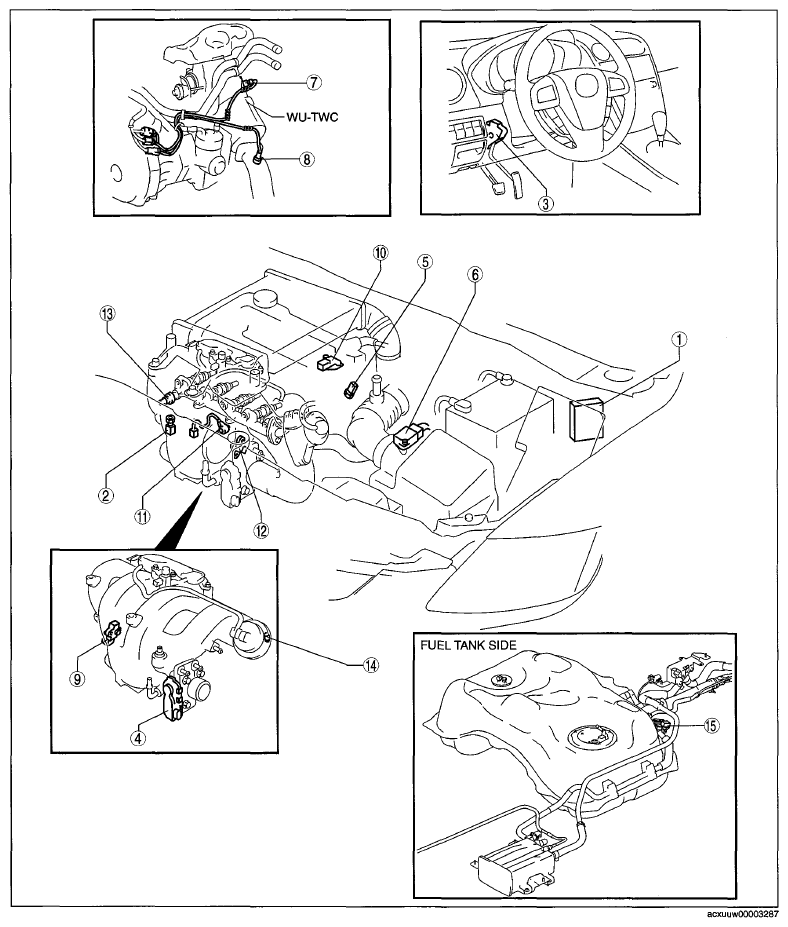

Fig 1: Control System Components Location (L3 With TC)
G06724789Courtesy of MAZDA MOTORS CORP.

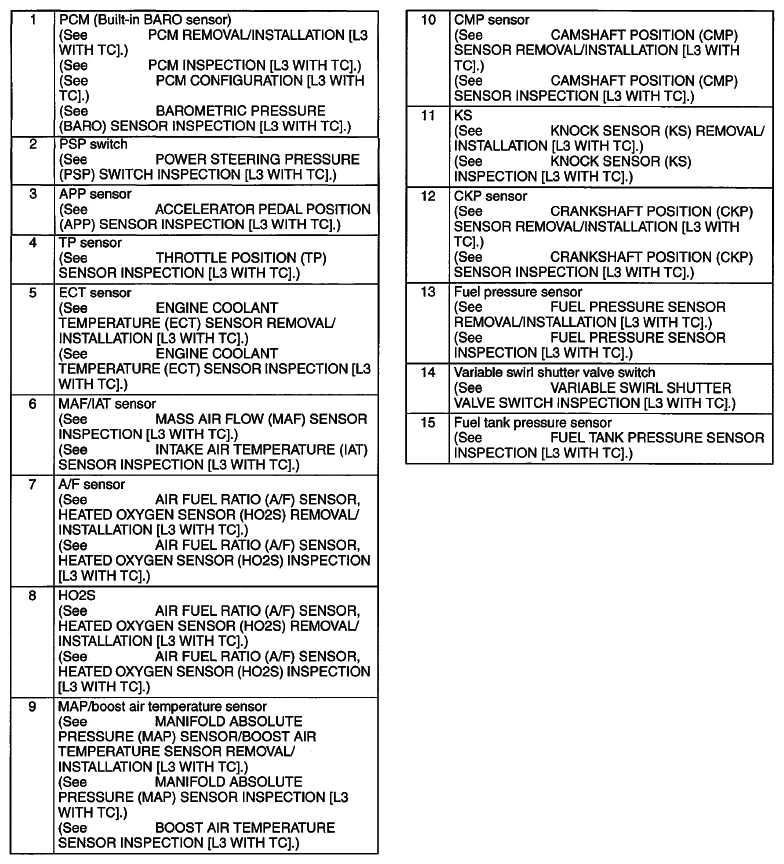

Fig 2: Control System Legends
G06724790Courtesy of MAZDA MOTORS CORP.
