Pcm Removal/Installation: Notes

NOTE:

For PCM replacement, set up the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION .)

Disconnect the negative battery cable.
Remove the charge air cooler duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the Battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
Remove the mudguard (LH).
Remove in the order indicated in the table in the illustration.
When replacing the PCM on the vehicles, perform the following.
- PCM parameter reset (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND START SYSTEM] .) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .)
Install in the reverse order of removal.

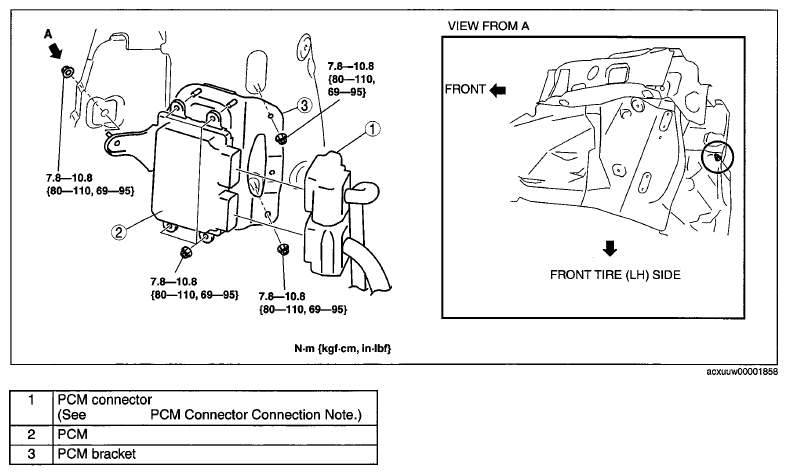

Fig 1: Exploded View Of PCM With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
