Front Abs Wheel-Speed Sensor Removal/Installation

  1. When removing the right front ABS wheel-speed sensor, perform the following procedure.
    1. Remove the coolant reserve tank installation bolts and move the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [MZI-3.7] .)
    2. Remove the power steering reserve tank installation bolt and nut, and move the power steering reserve tank. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION .)
  2. When removing the left front ABS wheel-speed sensor, perform the following procedure:
    1. Remove the air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)
  3. Remove in the order indicated in the table.

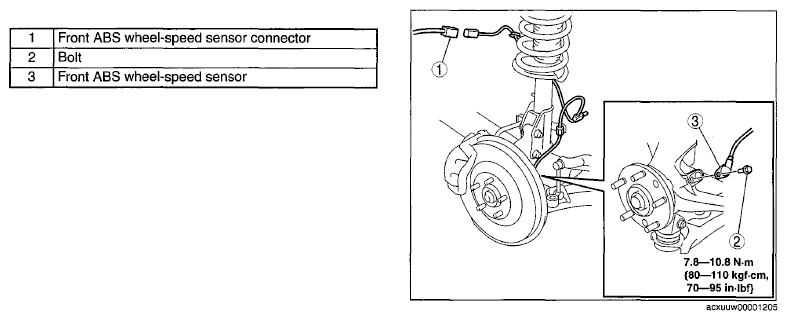

    Fig 1: Front ABS Wheel-Speed Sensor With Torque Specifications
    G06727852Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
