Power System Location Index

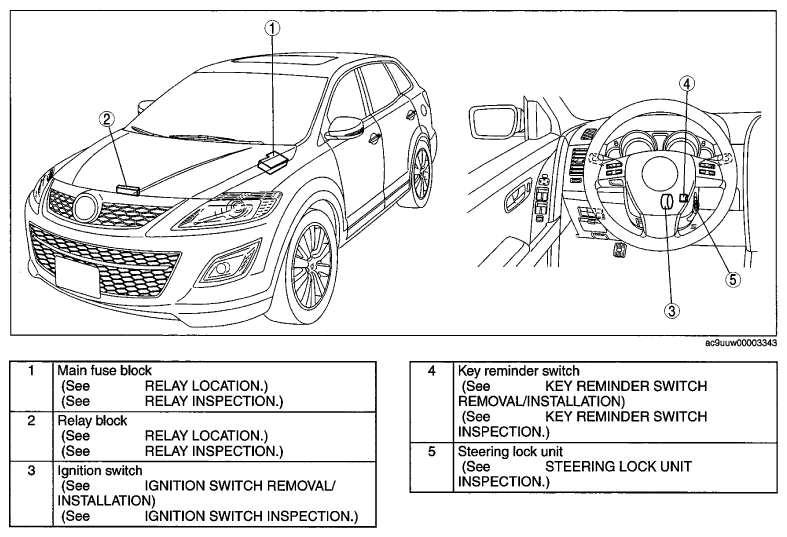

Fig 1: Power System Component Location Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
