On-Board Diagnostic - Engine Control System (Introduction)
>>
On-Board Diagnostic Test
>>
PID/Data Monitor Table
>>
The Mazda Modular Diagnostic System (M-MDS)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
The Mazda Modular Diagnostic System (M-MDS)

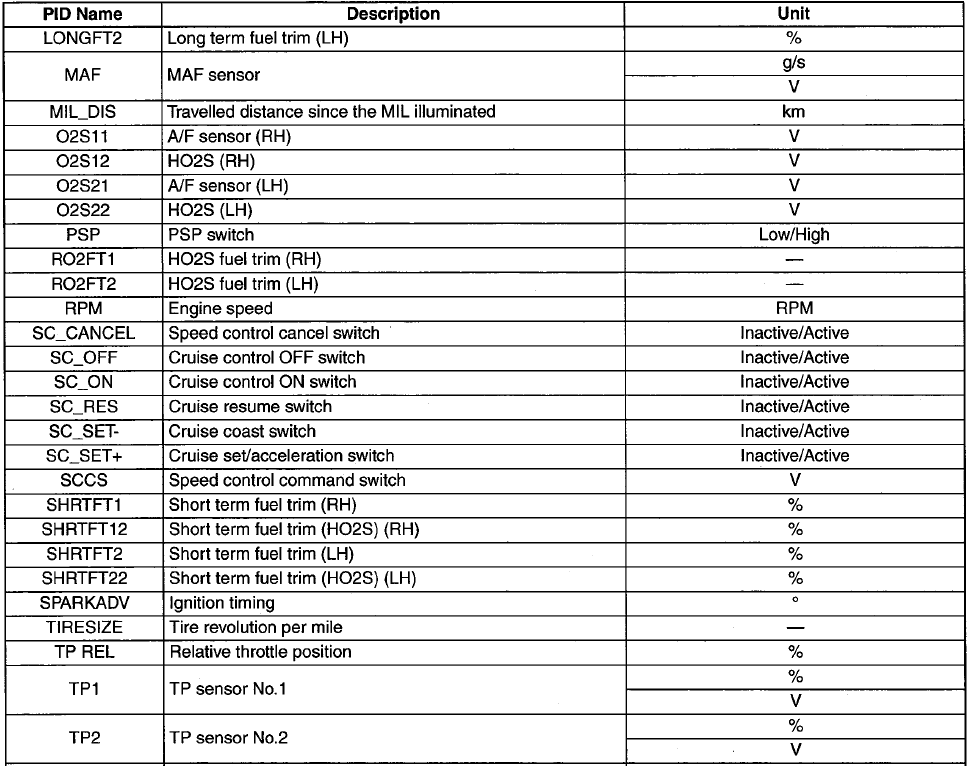

Fig 1: PID/Data Monitor Table (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

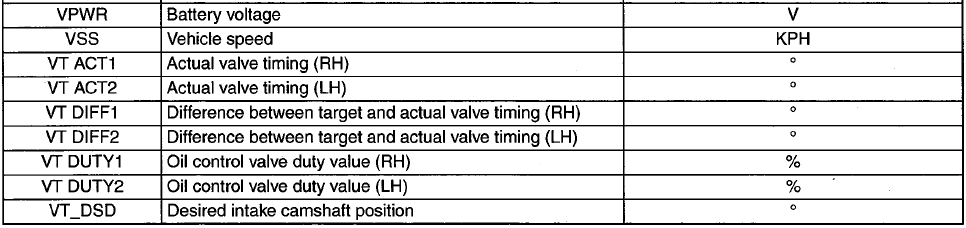

Fig 2: PID/Data Monitor Table (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

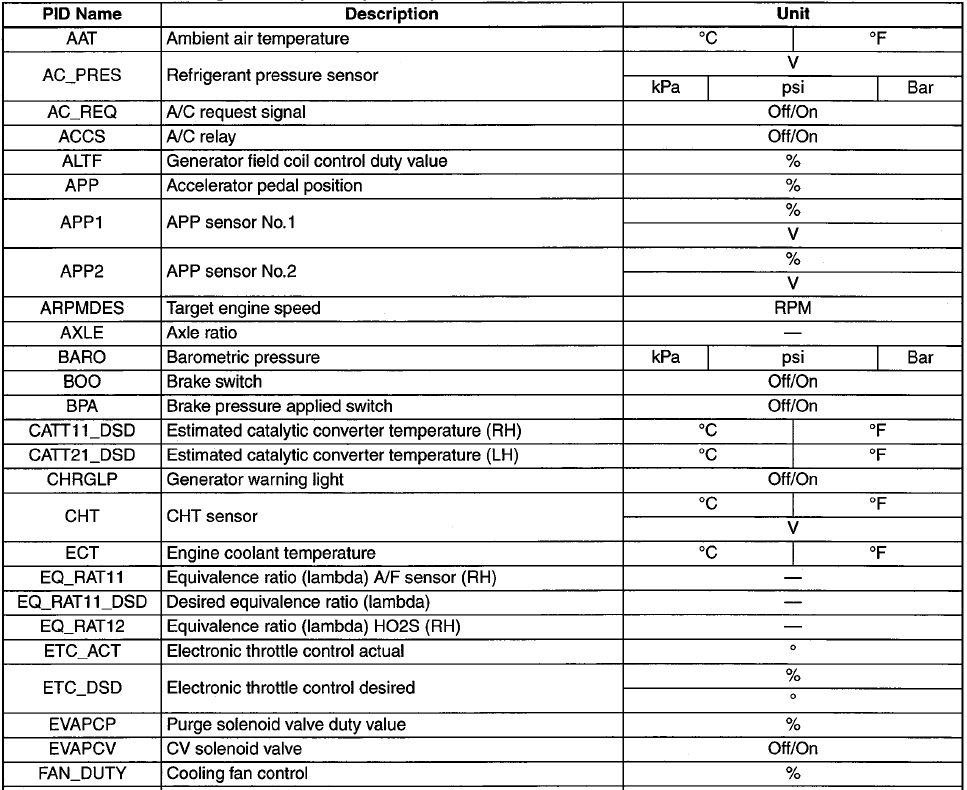

Fig 3: PID/Data Monitor Table (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

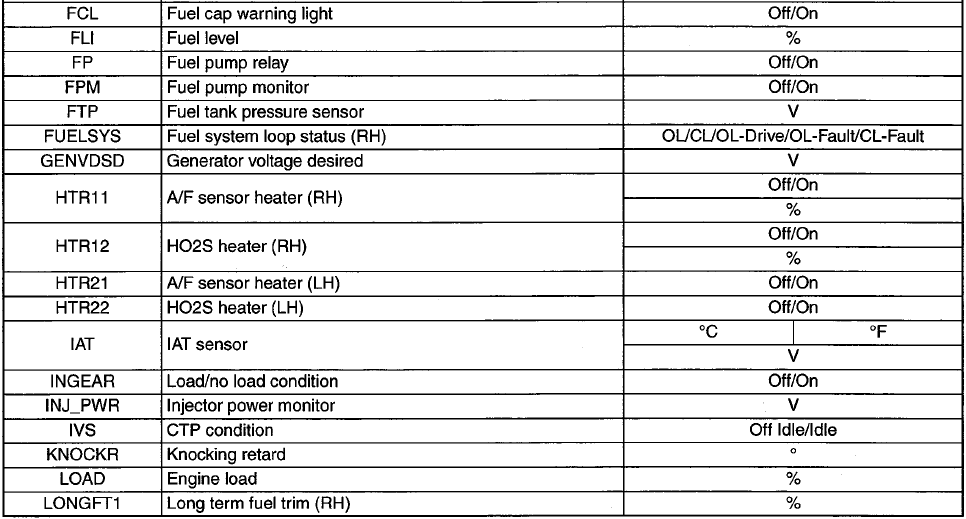

Fig 4: PID/Data Monitor Table (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
