Monitoring System And Control System Device Relationship Chart

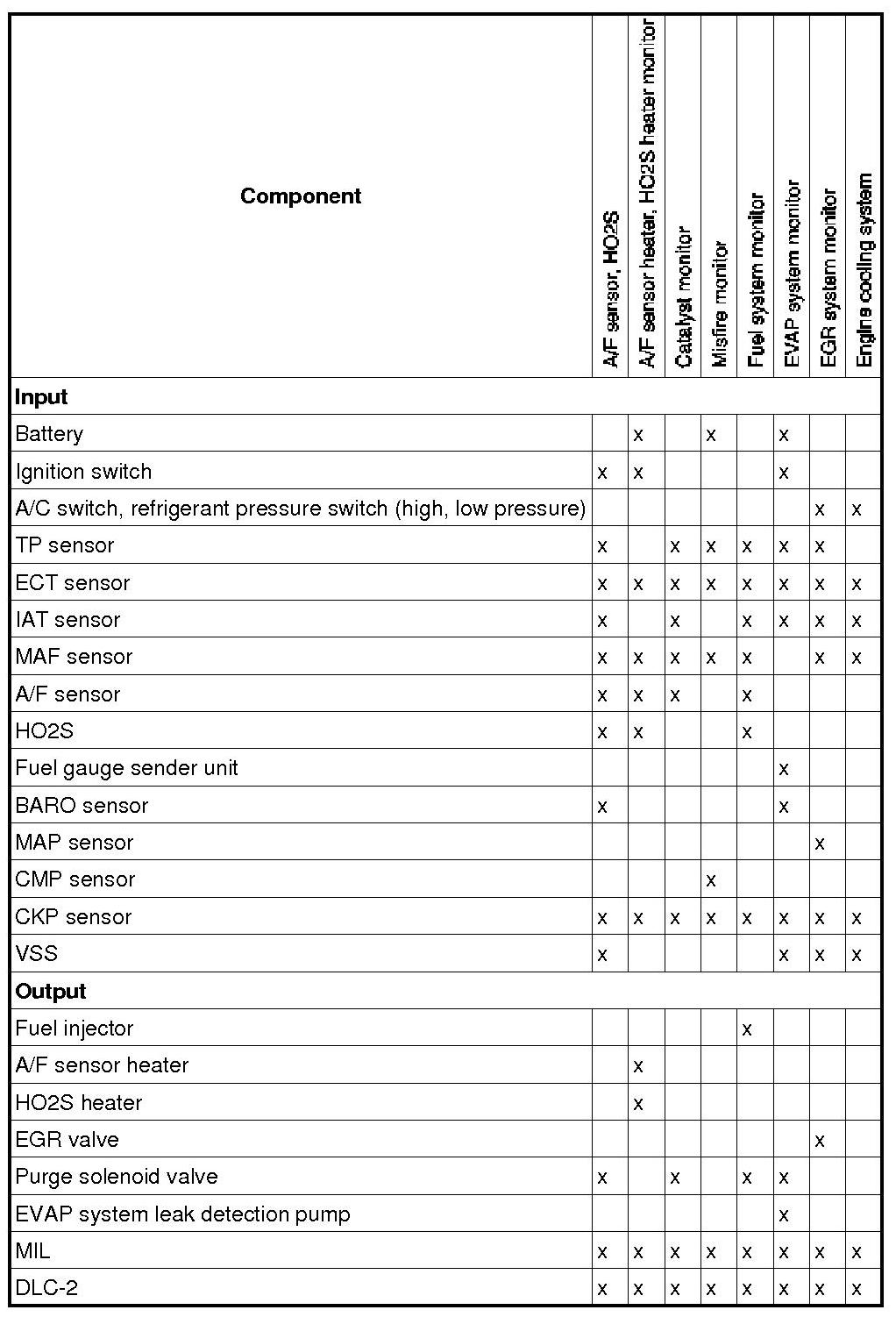

MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [LF]
x: Applicable
