Fuse Block: Service and Repair

UPPER BLOCK REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the main fuse block cover.

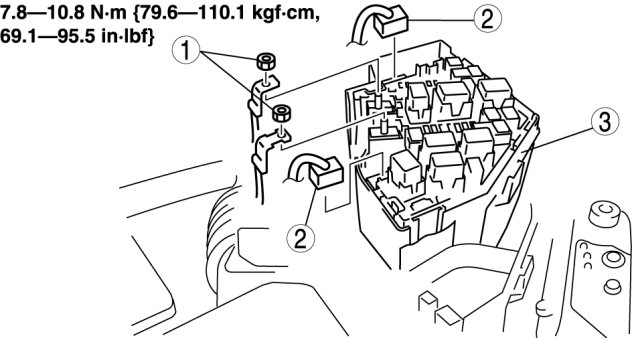

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

Upper Block Removal Note

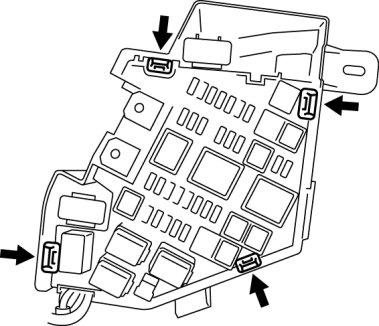

1. Press and remove the tabs on upper block at the positions indicated by the arrows.






2. Raise the upper block and remove it.
