Symptom Troubleshooting [Power Window System)
>>
Power Window System Wiring Diagram Power Window System (With Exterior Open/Close Function)
>>
Power Window Main Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Window Main Switch

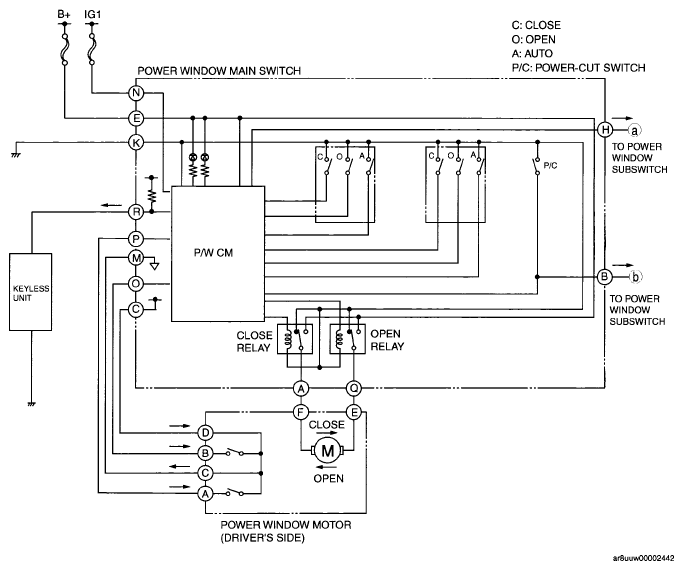

Fig 1: Power Window Main Switch - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
